Hello James,

Apparently something went wrong when generating the binary datafile,
though I can't tell exactly why from your matlab code.

This error occurs when the binary datafile doesn't have the expected
size. The size is computed from the number of event, and what
mandatory/optional fields are in your data. From your header, the
datafile should contain 1966080 events with normalization and scatter
correction factors. Each event will be composed of (time(uint32) + event
value (FLNTBDATA) + scat factor (FLTNBDATA) + norm factor (FLTNBDATA) +
2*ID (2*uint32). As you said, default FLNTBDATA is 32-bits floats, so
this means the code will expect a datafile with a size equal to
1966080*(6*4bytes) = 47185920 bytes. (The error message erroneously
states the expected size is 39321600 bytes because there is a small typo
in your data header for the normalization field. It should be
"Normali*z*ation correction flag" instead of "Normali*s*ation correction
flag", unless it won't enable normalization factors).

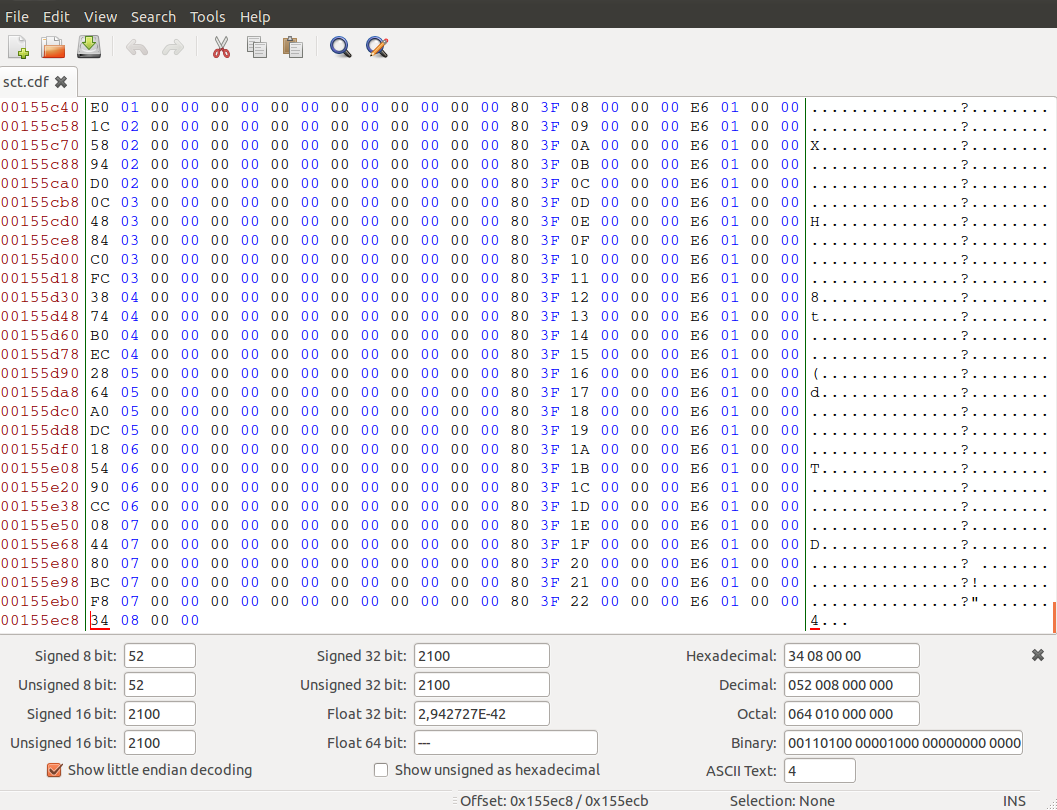

Now looking at your binary datafile with an hexa editor, it seems your
conversion stopped after 58354 events (see attached file) for some
reasons. Besides, each event has the correct number of fields, but it
seems that all pixel data and scat factor are equals to 0.

Hope it helps !

Best regards,

Thibaut



--
