[Castor-users] Scatter rate estimation for LM-TOF-MLEM

[jbaran]

Dear Castor Developers and Users,

I am trying to incorporate the information about the scatter correction
in LM-TOF-MLEM reconstruction. I have calculated the scatter fraction
for each TOF bin. The values of scatter rate are in range 1-2. I have
applied them for the reconstruction, however the reconstructed images

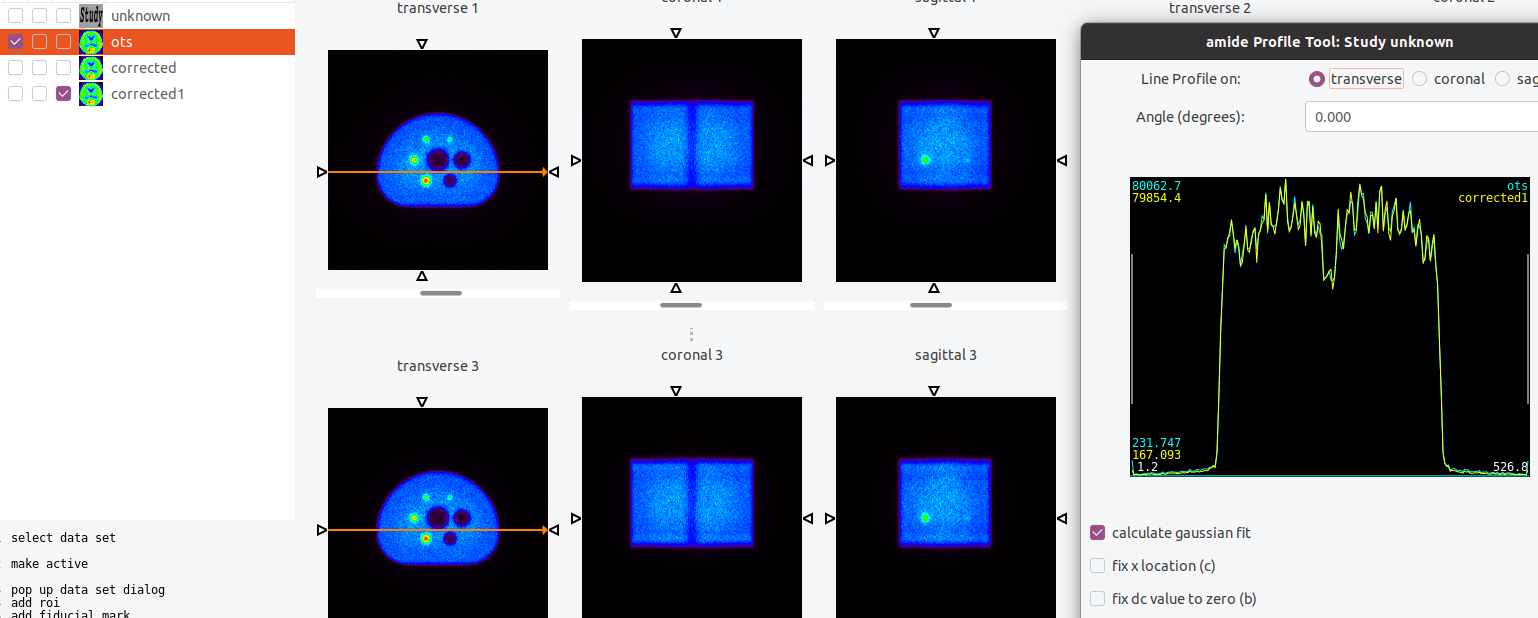

seem to be not corrected for scatter. Please find the attached
screenshot. On the top panel, the reconstructed image with true+scatter
coincidences is presented and on the bottom the same coincidences were
used but with scatter correction applied. On the right corresponding
line profiles are presented (ots - no scatter correction; corrected1 -
scatter correction applied)

FYI: The total number of coincidences used for the reconstruction is 1
order of magnitude lower than the number of possible LORs.

Do you have any idea what kind of values should be applied for the
scatter rate? Did you have any similar case and found the solution how
the scatter rate should be calculated?

All the best,
Jakub
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screenshot from 2021-08-18 00-36-18.png
Type: image/png
Size: 322840 bytes
Desc: not available
URL: <http://lists.castor-project.org/pipermail/castor-users/attachments/20210818/4a4630ca/attachment-0001.png>
