[Castor-users] Query related to castor-GateMacToGeom

[Kajal Aggarwal]

Hello,

Thank you for the detailed explanation. I am having troubles to reconstruct
an image for a cylindrical PET system simulated using Gate. I am generating
.geom file and .cdh and .cdf files (attached in this email) for my .mac

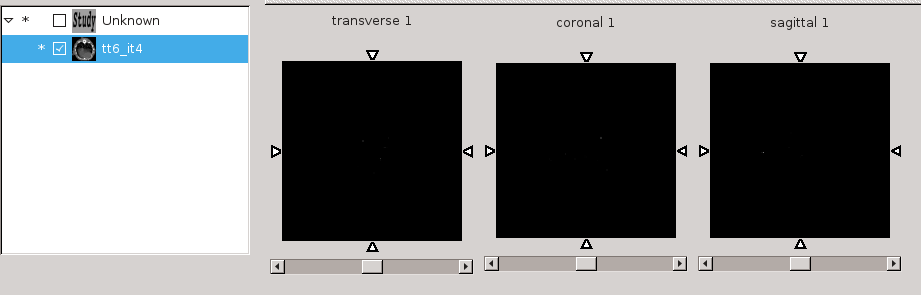

file and for the output root file. But the image generated has some problem
(see the screen-shot below). Please guide me where I am going wrong.

Thank you very much for all your support.

Regards,
Kajal


[image: Inline image 1]


[image: Inline image 2]

On Tue, Aug 1, 2017 at 9:00 PM, tmerlin <Thibaut.Merlin at univ-brest.fr>
wrote:

> Hello Kajal,
>
> F.O.V variables are arbitrary computed as *scanner_radius(mm)**/4* for
> the transaxial component, and the axial dimension (mm) of the rsector/block
> for the axial component. The transaxial/axial number of voxels are
> calculated from these values in order to get (large) isotropic 4mm voxels.
>
> The sole purpose of these variables is to be used as default for
> reconstruction dimensions/voxel sizes when using this scanner, in the case
> no dimensions have been initialized in command-line options. In practice,
> they are overwritten by the parameters entered in command line options (
> *-dim* for number of voxels, *-fov /-vox* for field of view and voxel
> dimensions initializations ).
>
> Best regards,
>
> Thibaut
>
> On 01/08/2017 16:54, Kajal Aggarwal wrote:
>
> Hello everyone,
>
> I am trying to create .geom file from a .mac file for PET scanner system.
> In the .geom file created, I would like to know how the voxels number
> transaxial, voxels number axial, field of view transaxial, field of view
> axial are being calculated.
>
>
>
>
> --
> Thanking you.
>
> Yours sincerely,
> Kajal Aggarwal
>
>
> _______________________________________________
> Castor-users mailing listCastor-users at lists.castor-project.orghttp://lists.castor-project.org/listinfo/castor-users
>
>
> --
> Thibaut MERLIN -- PhD
>
> Docteur en Imagerie Médicale au Laboratoire de Traitement de l'Information Medicale (LaTIM - INSERM UMR 1101)
> Bâtiment 1
> CHRU Morvan - 2, Av. Foch
> 29609 Brest CEDEX - FRANCE
> Tel: 06.75.12.24.90
>
>


--
Thanking you.

Yours sincerely,
Kajal Aggarwal
